ADDS 1010 Terminal with Keyboard
Personalities
- ADDS Viewpoint/A1, A2, 3A+
- ADDS Viewpoint/+ Lear Siegler ADM 3A
Display Features
- 14" flat face display
- Choice of green, amber or page white
- 80 columns
- 24 lines
- 25th Status Line
- Parallel printer port
- 6/12 programmable function keys
- Programmable editing keys
- 7 by 9 in a 9 by 13 character matrix
- Block or underline, blinking or steady cursor
- Separate cursor pad
- Smooth scroll
- Selectable screen saver
"A low cost terminal with extensive
keyboard programmability!"

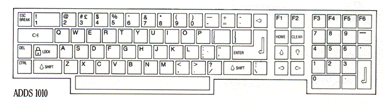

Keyboard
- 83 Key
- Separate numeric pad
- 6 shiftable to 12 programmable function keys
- Programmable editing keys 120 characters of NVRAM
Communications
- Main: RS232C, full or half duplex, 110-19, 200 baud
- Printer: Parallel; IBM PC cable compatible; Centronics compatible
- Languages:US/UK keyboard standard
- International keyboards: France/Belgium; Germany/Switzerland; Denmark/Norway; Sweden/Finland; Spain/Portugal
Physical
ADDS
1010 Display Unit
- Width: 12.5 inches 31.8 cm.
- Depth: 12.5 inches 31.8cm
- Height: 12.4 inches 31.5cm.
- Weight: 21.0 pounds 9.6kg.
ADDS 1010 Keyboard
- Width: 18.4 inches 46.7cm.
- Depth: 6.0 inches 15.2cm.
- Height: 1.3 inches 3.3cm.
- Weight: 3.5 pounds 1.6kg.
Environmental Conditions
- Temperature: Operating - 10-40 degrees C, Storage - 0-50 degrees C
- Humidity: 10-95% RH Non-condensing
- Altitude: 8,200 ft (2.5km)
- Storage: 29,850 ft (9.1km)
Electrical
Certification
UL-478; CSA 22.2; IEC/380; IEC/435;
FCC Part 15, Sub Part J; Class A Computing Device
Power Requirements
- Input Voltage: 115/230 Vac
- Frequency: 60/50 Hz
- Current: 0.5/0.25 amps.
Specifications subject to change without notice.
