A highly dependable general purpose terminal offering dual sessions with
simultaneous update. Compatible in most UNIX, XENIX, PICK, multi-user DOS
environments, or general ASCII, ANSI, or PC Term operations ASCII
FEATURES
- exceptional quality and reliability
- Made in the U.S.A.
- selectable split screen display
- 2 pages of display
- desk-top accessories
|
EMULATIONS
- ADDS Viewpoint and Regent 40
- DEC VT-100, VT-52
- Hazeltine 1500
- PC/Term
- Televideo TVI-925, 920, 910
- Wyse WY-75, WY-50
|
KEYBOARDS |
 |

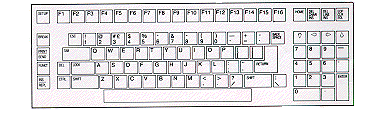

ASCII 16/32 programmable function keys |

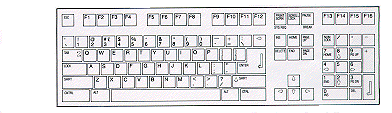

| PC/+ (106 key) (PS/2 style) 26/52 programmable function keys |
 |
| also available with PC/+ 107 key din keyboard |
COMMUNICATIONS
- full/half duplex, local, block and monitor modes of operation
- serial host port
-RS-232C, main host
-DTE, DB25 female
-50 to
38.4K baud
- second serial port
-RS232 second host/serial port
-DCE
-50 to
19.2K baud
- parallel printer port
-IBM PC cable and Centronics compatible
- optional RS-422, Current loop
|
DISPLAY FEATURES
- flicker-free 70Hz refresh rate
- 26 or 44 lines
- 80 or 132 columns
- 10 pages of memory
- two pages of display, full or split screen viewing
- double wide and double high/wide characters
- embedded and non-embedded attributes on the screen at the same time
- selectable scrolling region
- variable speed smooth scroll
- selectable screen saver
|
DUAL HOST SUPPORT
- simultaneous connection and operation with two hosts
- flexible display formats: 26 line alternating or 44 line split screen
- hot-key to alternate between hosts
- printer port support for both hosts
ERGONOMICS
- 14" flat face, reduced glare, high resolution screen
- conveniently located contrast, brightness and power controls
- choice of green, amber, or page white phosphor
- fully adjustable tile and swivel
WARRANTY
- 1 year return-to-factory
- optional additional 3 years
|
ENVIRONMENTALOperating environment
- temperature: 50oF to 104oF
(10oC to 40oC)
- altitude: 0 to 10,000 feet (0 to 3,300 meters)
Storage
Environment
- temperature: 32oF to 95oF (0oC to 50oC)
Humidity
- 10 to 95% RH, non-condensing
POWER REQUIREMENTS
- Voltage: 115/230 VAC
- Frequency: 60/50 Hz
- Current: 0.5/0.2 amps
|
PHYSICAL DIMENSIONS
- Display Unit 13.0" (L) x 12.5" (W) x 13.4" (H) (33.0 cm x 31.8 cm x
34.0 cm)
Shipping weight: 16.9 lbs (7.7kg)
- ASCII keyboard 18.3" (L) x 8.0" (W) x 2.1" (H) (46.5 cm x 20.3 cm x
5.3 cm)
Shipping weight: 4.3 lbs (1.9 kg)
- PC/+ keyboard 19.0" (L) x 7.4" (W) x 2.0" (H) (48.3 cm x 18.8 cm x
5.1 cm)
Shipping weight: 3.7 lbs (1.7 kg)
|
CERTIFICATIONS
- CSA Standard 22.2
- EN 55022 Class A
- EPA Energy Star (controller)
- FCC Class A
- IEC 380/VDE 0806
- IEC 950/VDE 0805
- MPR-II electromagnetic compliance
- UL 478, 5th edition
- VDE Class A optional
|
